Most homeowners plan their outdoor kitchen around a countertop layout. They plan their pool around a view. Almost nobody plans it around the dirt underneath. That’s usually the first mistake.
Across New York, backyard projects fail for the same quiet reason. The ground moves in ways nobody measured. A patio that looked level on a Saturday afternoon walkthrough turns out to sit on a two-inch slope. A pergola foundation ends up six inches off from the plan. None of this shows up until concrete is poured or footings are dug.
A topographic survey solves this before it becomes a problem. Here’s why it matters for large outdoor living spaces specifically.
New York Backyards Are Deceptively Uneven, and That’s a Problem for Slabs and Pavers
Eyes are bad at judging slope. A yard can look flat and still drop an inch every ten feet. That’s enough to crack a poured slab or shift pavers within a year or two.
New York properties add extra variables. Older lots often have decades of fill, regrading, and settling built into the soil. What sits on top may not match what’s underneath.

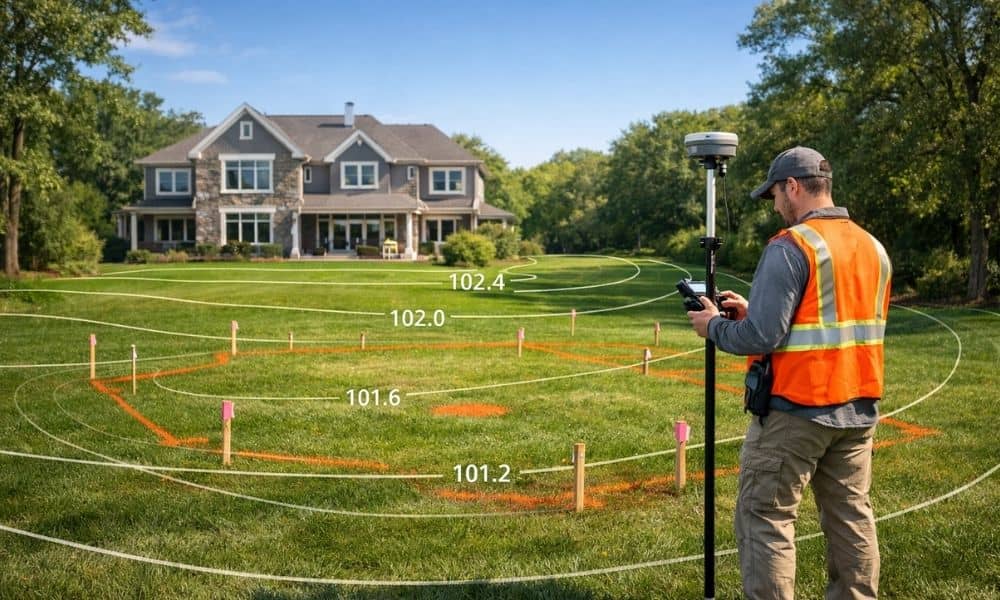

A topo survey maps the actual elevation of the land, not the impression of it. It records:
- Precise ground elevations across the whole project area
- Subtle high points and low points invisible to the eye
- Existing slope direction and grade percentage
Contractors use this data to set a stable base before anything gets poured. Skipping it means guessing, and guessing on a patio slab gets expensive fast.
How Elevation Data Prevents Water From Draining Into Your New Kitchen or Fire Pit
Water always finds the lowest point. If that lowest point happens to be your new outdoor kitchen, you have a drainage problem waiting to happen.
This is where topo survey data earns its keep. Contour lines show exactly how water moves across a property before any construction starts. Designers use that information to plan slope, drains, and grading around the new structure instead of against it.
Sunken patios and fire pit areas are especially vulnerable. Without accurate elevation data, these low-lying features can become water traps during heavy rain. Add in New York’s wet spring and fall seasons, and drainage planning stops being optional.
A topo survey gives the design team something to work with before the first stone is set, not after the first flood.
Setback and Grade Conflicts That Surprise Homeowners Adding Pergolas, Pools, or Outdoor Kitchens
Zoning setbacks are only half the equation. Many municipalities also regulate grade changes near property lines, especially when a pool, retaining wall, or raised structure is involved.
Here’s the surprise that catches homeowners off guard: a project can meet setback distance and still violate a grade limit. Raising the ground level near a boundary line, even slightly, can trigger a permit issue that a distance measurement alone won’t reveal.
A topo survey paired with boundary data shows both pieces at once. That means:
- Confirming the structure sits far enough from the property line
- Confirming the grade change near that line stays within local limits
- Avoiding a stop-work order mid-project because of a rule nobody checked
Catching this before excavation begins saves a redesign later.
Why Contractors Ask for a Topo Survey Before Quoting Retaining Walls or Multi-Level Patios
Contractors don’t ask for a topo survey to be difficult. They ask because bidding blind on sloped terrain is a losing game.
Tiered patios, retaining walls, and stepped decking all depend on accurate elevation change. Without it, a contractor is estimating dirt work, wall height, and material quantities from a guess. That guess almost always turns into a change order once the real grade shows up during excavation.
A topo survey removes that uncertainty from the bid itself. The contractor knows the actual elevation drop across the site before pricing the job. That means:
- Fewer surprise costs mid-project
- More accurate material estimates for retaining walls
- A realistic timeline instead of one built on assumptions
Homeowners benefit here too. A quote based on real elevation data is a quote that’s more likely to hold.
Utility Lines Beneath Your Future Outdoor Space: What a Topo Survey Flags Before You Dig
Outdoor kitchens need gas lines. Pools need electricity. Irrigation systems need their own network of pipes. All of it runs somewhere underground, and none of it is visible from the surface.
A topo survey documents visible surface features and known utility markers as part of the overall site picture. This isn’t a substitute for a full utility locate request, but it adds another layer of awareness before design work begins.
Combining topo data with a proper utility location gives the clearest possible view of what’s above and below ground. That combination helps avoid the two most common excavation surprises: hitting a line that wasn’t marked, and designing a structure directly over one that was.
For any large outdoor living space involving gas, water, or electrical features, this step belongs early in the planning process, not after the trenching starts.
