A foundation only gets one shot at being right. Once concrete sets, there’s no nudging a wall two inches to the left. That’s why construction staking, the process of marking exact building corners and elevations in the field before digging starts, carries more weight than most homeowners and even some builders realize. In Rochester, where frost, sloped lots, and century-old lot lines all complicate the picture, staking accuracy isn’t a formality. It’s the difference between a foundation that passes inspection and one that gets torn out.
How a Fraction of an Inch at the Stake Becomes a Foundation-Wide Problem
A stake that’s off by half an inch doesn’t stay half an inch off. It grows.
Here’s why. A footing gets built from the stake. The wall gets built from the footing. The framing gets built from the wall. Each step adds its own small error on top of the last one. By the time the roof trusses go up, that quarter-inch at the stake can turn into a wall that’s out of square, a door that won’t hang right, or siding that won’t line up at the corners.
Contractors call this tolerance stack-up. One small miss doesn’t ruin a house by itself. But small misses pile up fast, and once framing starts, there’s no cheap fix left. Tearing out and repouring a footing costs far more than the original staking job ever did.
The fix is simple: get the stakes right the first time. Don’t treat staking as a quick task before the “real work” begins. It is the real work.
Rochester’s Frost Line Turns Staking Into More Than an X-Y Problem
Most people think of staking as marking where a foundation sits on the ground. Left and right. Front and back. That’s only half the job.
In Rochester, footings have to sit below the frost line, which typically falls somewhere between 42 and 48 inches deep depending on the specific code table your municipality applies. Miss that depth and you’ve got a problem, even if the footing sits in exactly the right spot on paper.
A footing that’s staked perfectly in plan view but poured too shallow can still fail inspection. Worse, it can look fine on day one and then heave or crack once winter frost pushes up from underneath. That kind of damage doesn’t show up right away. It shows up a year or two later, as cracks in walls or doors that stick.
Good staking sets both position and elevation together. Ask your surveyor to confirm depth control on every corner stake, not just the horizontal layout.
Why Rochester’s Older Platted Lots Make Setback Staking Riskier
Neighborhoods like Irondequoit, Brighton, and parts of the 19th Ward were laid out generations ago. Lots were often narrow, and lines were drawn to fit the standards of that era, not today’s zoning code.
That mismatch causes real problems. A stake set from an old plat, without checking it against current setback rules, can put a foundation corner too close to a property line. Sometimes the error isn’t caught until a neighbor complains or an inspector measures during a final walkthrough. At that point, the fix might mean redesigning the footprint or applying for a variance, both of which cost time and money.
Before staking begins on an older lot, a surveyor should pull the original plat and reconcile it against the town’s current zoning setbacks. This step takes a day. Skipping it can cost months.
When Design Elevations and Field Stakes Disagree on a Sloped Lot
Plans on paper are flat. Land rarely is.
Lots near the Genesee River valley, or set on Rochester’s rolling drumlin terrain in places like the South Wedge or Pittsford’s hillsides, often have grade changes that don’t show up clearly in a blueprint. An architect sets an elevation on paper based on an assumed benchmark. The field doesn’t always match that assumption.
When the design elevation and the actual ground elevation disagree, and nobody catches it, the result is a foundation that sits too high or too low relative to the finished grade. That throws off drainage. Water that should run away from the house instead pools against it. It can also throw off the height of the first floor relative to the driveway or the street.
Staking crews need to check field elevations against the design datum before excavation, not after. Catching a mismatch at the stake takes minutes. Catching it after the foundation is poured takes a jackhammer.
Why Stakes Set in Fall Rarely Survive a Winter Intact
If a lot gets staked in October but the pour doesn’t happen until March, don’t assume those stakes are still where they started.
Winters move ground. Frost heave shifts soil. Snowplows clear driveways and knock out stakes without anyone noticing. Freeze-thaw cycles through late winter can tilt or bury markers completely. A stake that was dead-on in the fall can be inches off, or missing, by spring.
The fix here isn’t complicated. Never pour a footing off winter-old stakes without rechecking them first. A quick reverification before the pour catches shifted corners before they become poured mistakes. It’s a short visit for a surveyor and cheap insurance against a foundation that’s wrong from day one.
FAQ
How accurate does construction staking actually need to be for a residential foundation?
Most residential foundation staking holds to about a quarter-inch of horizontal accuracy, with similarly tight control on elevation. That’s tighter than typical boundary survey tolerances, because a footing leaves no room for error once framing starts.
What’s the difference between foundation stakes, batter boards, and offset stakes?
Foundation stakes mark corners directly. Batter boards sit back from the excavation area so they survive digging, letting crews restring the corner lines as needed. Offset stakes sit a fixed distance from the true line so heavy equipment doesn’t destroy the mark during grading. Each one serves a different phase of the build.
Does the City of Rochester or Monroe County require stake verification before a foundation inspection?
Inspectors don’t typically re-survey the stakes themselves. They check the poured foundation against the approved plot plan. If staking was off, that’s usually where it gets caught.
If a foundation is poured off-location, who’s responsible, the surveyor or the contractor?
It depends on who last touched the stakes. A surveyor is responsible for accurate initial layout. A contractor is responsible for building to those marks without disturbing or misreading them. Most disputes come down to documentation: what was staked, and what was actually built.
Can GPS or RTK staking be used reliably on tight, tree-covered lots?

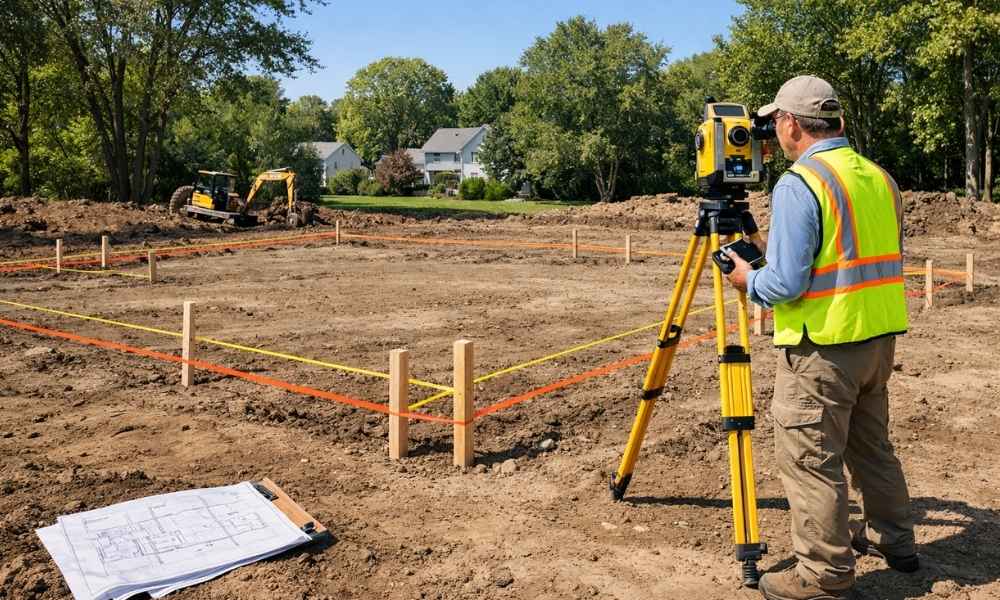

Dense tree canopy and tight urban lots, common across Rochester neighborhoods, can weaken GPS signal accuracy. Many surveyors fall back on a total station for final foundation staking in those conditions instead of relying on RTK alone.
